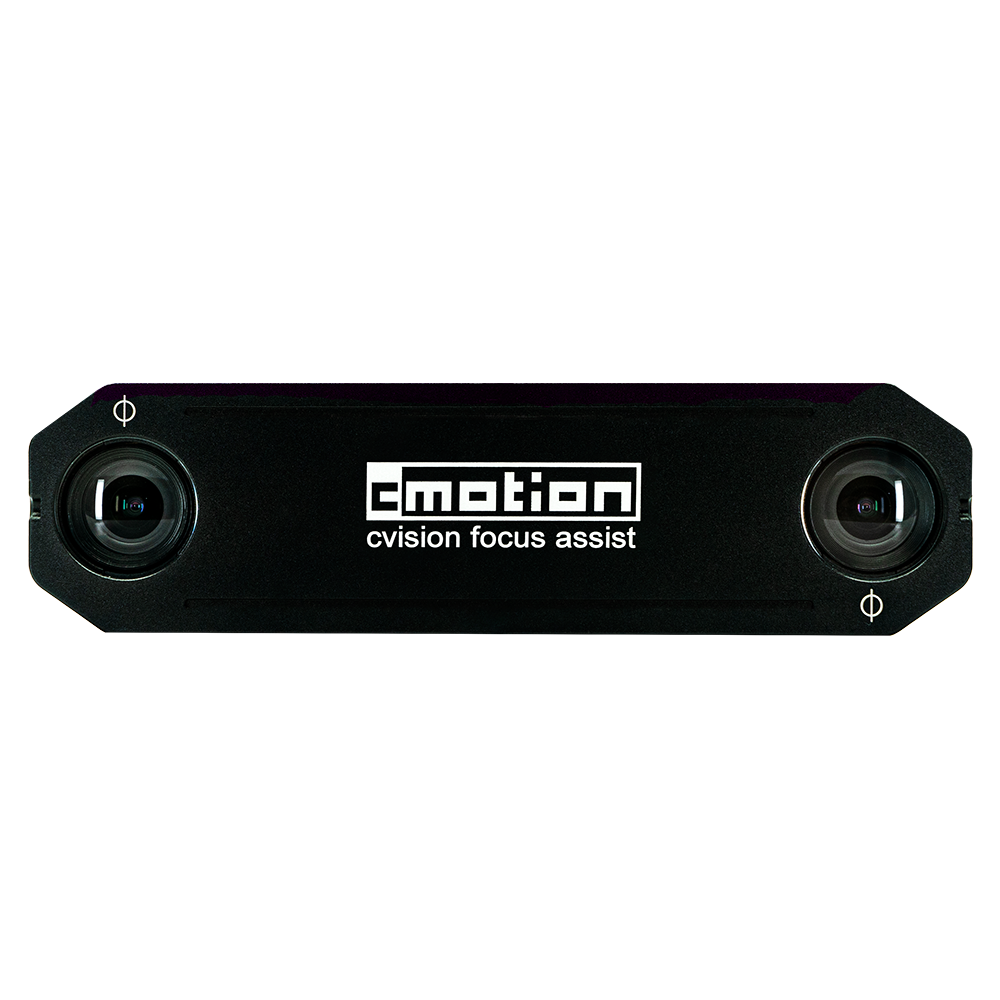

cvision focus assist basic set (2nd GEN.)
cvision focus assist basic set (2nd GEN.) includes:
Main components:
1x cvision main unit (CMU) (2nd GEN.)
1x cvision basic software
1x cmu - rod mount
2x cmu - mounting extension
Cables:
1x cable LPS-7 - LBUS power cable (Le 4p, Anton Bauer 2p) 0,8m
NOTE: cvision main unit (CMU) is fully LBUS integrated in its 2nd generation, but also offers serial communication for 3rd party lens control systems. - [K0.0010104] LCUBE CUB-1 is NOT required.
cvision focus assist basic set offers
- Stand-alone mode (Nearest function)
- Interface with different lens control systems
What is cvision focus assist?
The cvision measurement unit uses 2 cameras to create and display a stereoscopic depth map from 250,000 real-time measurement points. Various measuring and autofocus features are made possible through the live-view touch screen interface. “Single point” allows you to measure your set on the fly. “Tracking” locks onto a subject allowing you to track it through the shot, or even select your subject before entering the frame. “Nearest” allows you to select a user defined area where the closest subject to the camera is measured and kept in focus - which is a great feature to pick perfectly sharp shots even during a run and gun shoot.
In combination with a cPRO lens control system, cvision offers advanced autofocus features but also manual control at the press of a button. cvision is the ultimate focus assist on set. But, it can also be used standalone for unmanned cameras in a broadcast environment.
![Odoo text and image block](https://shop.cmotion.eu/web/image/7786/WhatsApp Image 2021-03-22 at 11.51.10.jpeg)
![Odoo CMS - a big picture](https://shop.cmotion.eu/web/image/7787/WhatsApp Image 2021-05-25 at 18.21.53.jpeg)
The cvision measurement unit uses 2 cameras to create and display a stereoscopic depth map from 250,000 real-time measurement points. Various measuring and autofocus features are made possible through the live-view touch screen interface. “Single point” allows you to measure your set on the fly. “Tracking” locks onto a subject allowing you to track it through the shot, or even select your subject before entering the frame. “Nearest” allows you to select a user defined area where the closest subject to the camera is measured and kept in focus - which is a great feature to pick perfectly sharp shots even during a run and gun shoot.
In combination with a cPRO lens control system, cvision offers advanced autofocus features but also manual control at the press of a button. cvision is the ultimate focus assist on set. But, it can also be used standalone for unmanned cameras in a broadcast environment.
![Odoo text and image block](https://shop.cmotion.eu/web/image/7786/WhatsApp Image 2021-03-22 at 11.51.10.jpeg)
![Odoo CMS - a big picture](https://shop.cmotion.eu/web/image/7787/WhatsApp Image 2021-05-25 at 18.21.53.jpeg)
Features:
Distance:
• Real-time distance measurement read out
• Tracking function for moving subjects
• Interface with different lens control systems (LCS)
Focus pulling:
• Integrated LCS functions with direct focus motor control
• Integrated LBUS interface
• Multiple autofocus functions
• Stand-alone mode for nearest function
• Easily switchable between manual and automatic focus control
• Variable time and speed control over focus pull
Advanced focus pulling:
• Integration of a graphical user interface
• Visualization of depth map
• Regular and advanced focus peaking visualization
• Fingertip focus control
• Presets
• Multi tracking
![Odoo text and image block](https://shop.cmotion.eu/web/image/6085/advanced-focuspeaking.jpg)
Features:
Distance:
• Real-time distance measurement read out
• Tracking function for moving subjects
• Interface with different lens control systems (LCS)
Focus pulling:
• Integrated LCS functions with direct focus motor control
• Integrated LBUS interface
• Multiple autofocus functions
• Stand-alone mode for nearest function
• Easily switchable between manual and automatic focus control
• Variable time and speed control over focus pull
Advanced focus pulling:
• Integration of a graphical user interface
• Visualization of depth map
• Regular and advanced focus peaking visualization
• Fingertip focus control
• Presets
• Multi tracking
![Odoo text and image block](https://shop.cmotion.eu/web/image/6085/advanced-focuspeaking.jpg)
The first true focus peaking calculation
The unique depth of field indicator provides perfect focus peaking to guide you when pulling focus manually.
![Odoo - Sample 1 for three columns](https://shop.cmotion.eu/web/image/6086/focus-near.jpg)
![Odoo - Sample 3 for three columns](https://shop.cmotion.eu/web/image/6088/focus-mid-2.jpg)
The unique depth of field indicator provides perfect focus peaking to guide you when pulling focus manually.
![Odoo - Sample 1 for three columns](https://shop.cmotion.eu/web/image/6086/focus-near.jpg)
![Odoo - Sample 3 for three columns](https://shop.cmotion.eu/web/image/6088/focus-mid-2.jpg)
![Odoo - Sample 3 for three columns](https://shop.cmotion.eu/web/image/6089/focus-far-2.jpg)
![Odoo - Sample 2 for three columns](https://shop.cmotion.eu/web/image/6087/focus-mid-1.jpg)
