cvision focus assist basic set (2nd GEN.)

C0Y1-K50

10.980,00 € 10980.0 EUR

10.980,00 €

Add to List

cvision focus assist basic set (2nd GEN.) includes:

Main components:

1x cvision main unit (CMU) (2nd GEN.)

1x cvision basic software

1x cmu - rod mount

2x cmu - mounting extension

Cables:

1x cable LPS-7 - LBUS power cable (Le 4p, Anton Bauer 2p) 0,8m


NOTE: cvision main unit (CMU) is fully LBUS integrated in its 2nd generation, but also offers serial communication for 3rd party lens control systems. - [K0.0010104] LCUBE CUB-1 is NOT required.


cvision focus assist basic set offers

- Stand-alone mode (Nearest function)

- Interface with different lens control systems

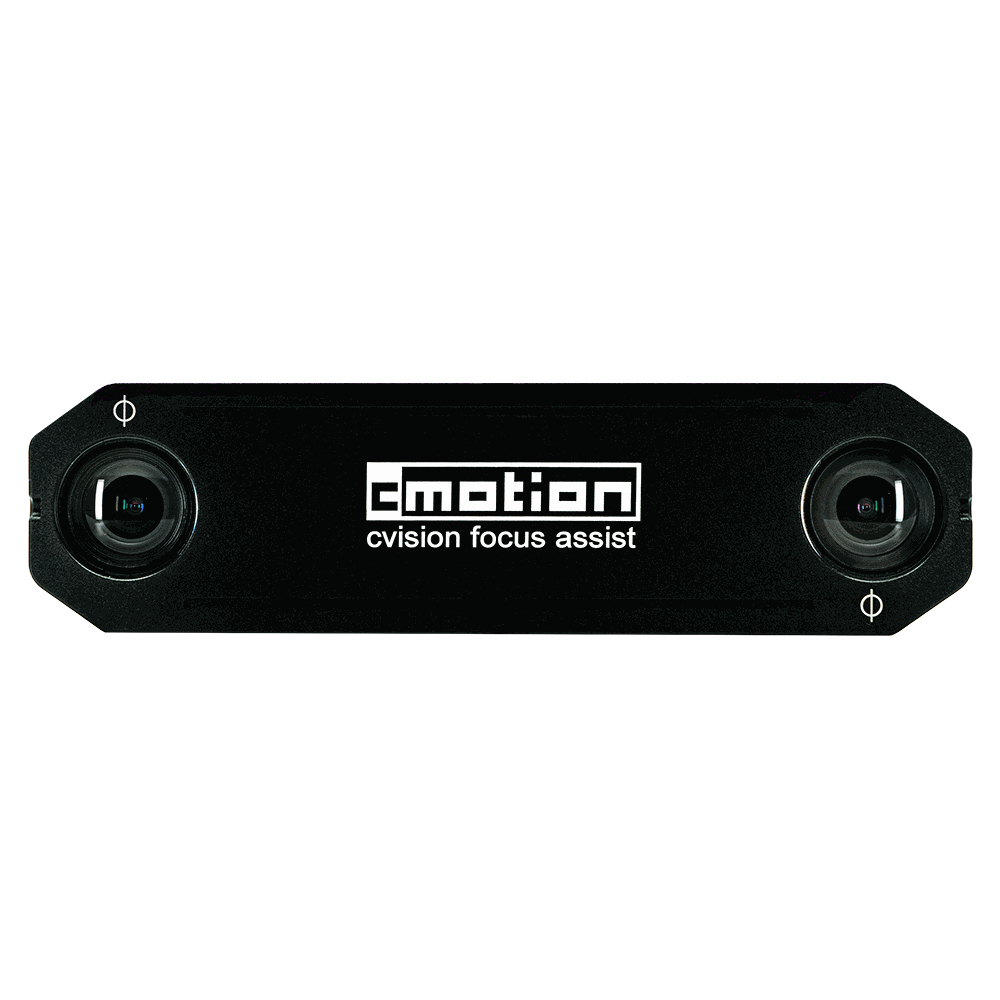

What is cvision focus assist?

The cvision measurement unit uses 2 cameras to create and display a stereoscopic depth map from 250,000 real-time measurement points. Various measuring and autofocus features are made possible through the live-view touch screen interface. “Single point” allows you to measure your set on the fly. “Tracking” locks onto a subject allowing you to track it through the shot, or even select your subject before entering the frame. “Nearest” allows you to select a user defined area where the closest subject to the camera is measured and kept in focus - which is a great feature to pick perfectly sharp shots even during a run and gun shoot.

In combination with a cPRO lens control system, cvision offers advanced autofocus features but also manual control at the press of a button. cvision is the ultimate focus assist on set. But, it can also be used standalone for unmanned cameras in a broadcast environment.

Odoo text and image block
Odoo CMS - a big picture

Features:

Distance:

• Real-time distance measurement read out

• Tracking function for moving subjects

• Interface with different lens control systems (LCS)


Focus pulling:

• Integrated LCS functions with direct focus motor control

• Integrated LBUS interface

• Multiple autofocus functions

• Stand-alone mode for nearest function

• Easily switchable between manual and automatic focus control

• Variable time and speed control over focus pull


Advanced focus pulling:

• Integration of a graphical user interface

• Visualization of depth map

• Regular and advanced focus peaking visualization

• Fingertip focus control

• Presets

• Multi tracking

Odoo text and image block

The first true focus peaking calculation

The unique depth of field indicator provides perfect focus peaking to guide you when pulling focus manually.
